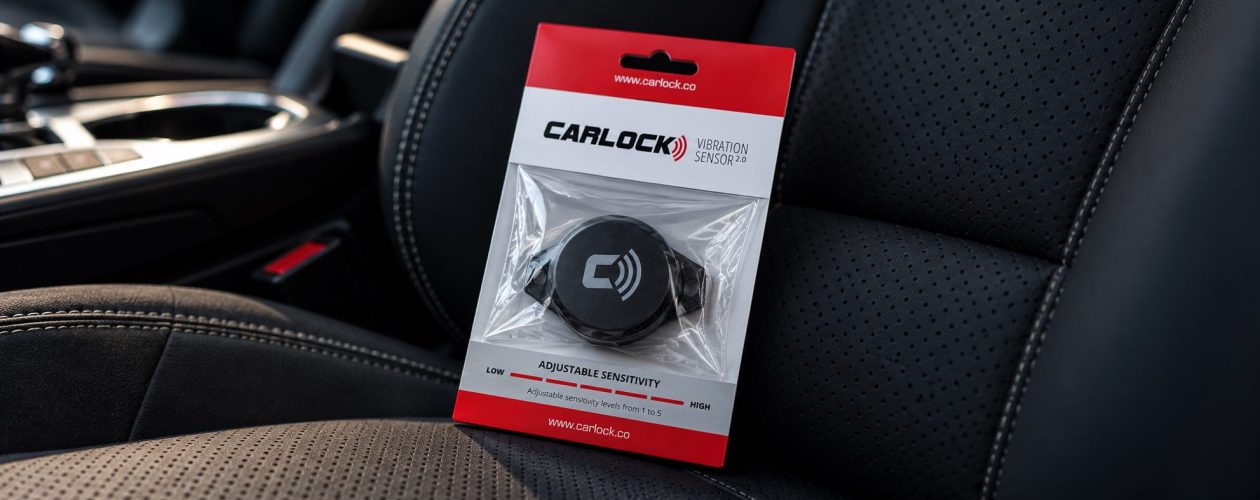

CarLock Vibration Sensor 2.0 with Adjustable Sensitivity

Take more control over how your vehicle is protected with the CarLock Vibration Sensor 2.0.

Designed to work alongside your existing CarLock device, the sensor detects vibrations inside your vehicle and sends a notification directly to the CarLock App when activity is detected.

What makes the new 2.0 version different is the ability to adjust the vibration sensitivity. You can fine-tune how responsive the sensor should be depending on where your vehicle is parked, your surroundings, and the level of protection you prefer.

Whether you want the sensor to react to lighter vibrations or only stronger movement, the sensitivity can be adapted to suit your needs.

Place the Vibration Sensor 2.0 inside your vehicle within range of your CarLock device, choose your preferred sensitivity level, and let CarLock keep an extra watch on your car.

Extend your CarLock’s powerful security features and enjoy complete peace of mind with this revolutionary and affordable anti-theft device.

To use the CarLock Vibration Sensor 2.0, you must already have an active CarLock account and a CarLock device installed in your vehicle.

Warning if Vibration Sensor is not supported on your CarLock device

How to pair the Vibration Sensor 2.0 with your CarLock device via the CarLock app?

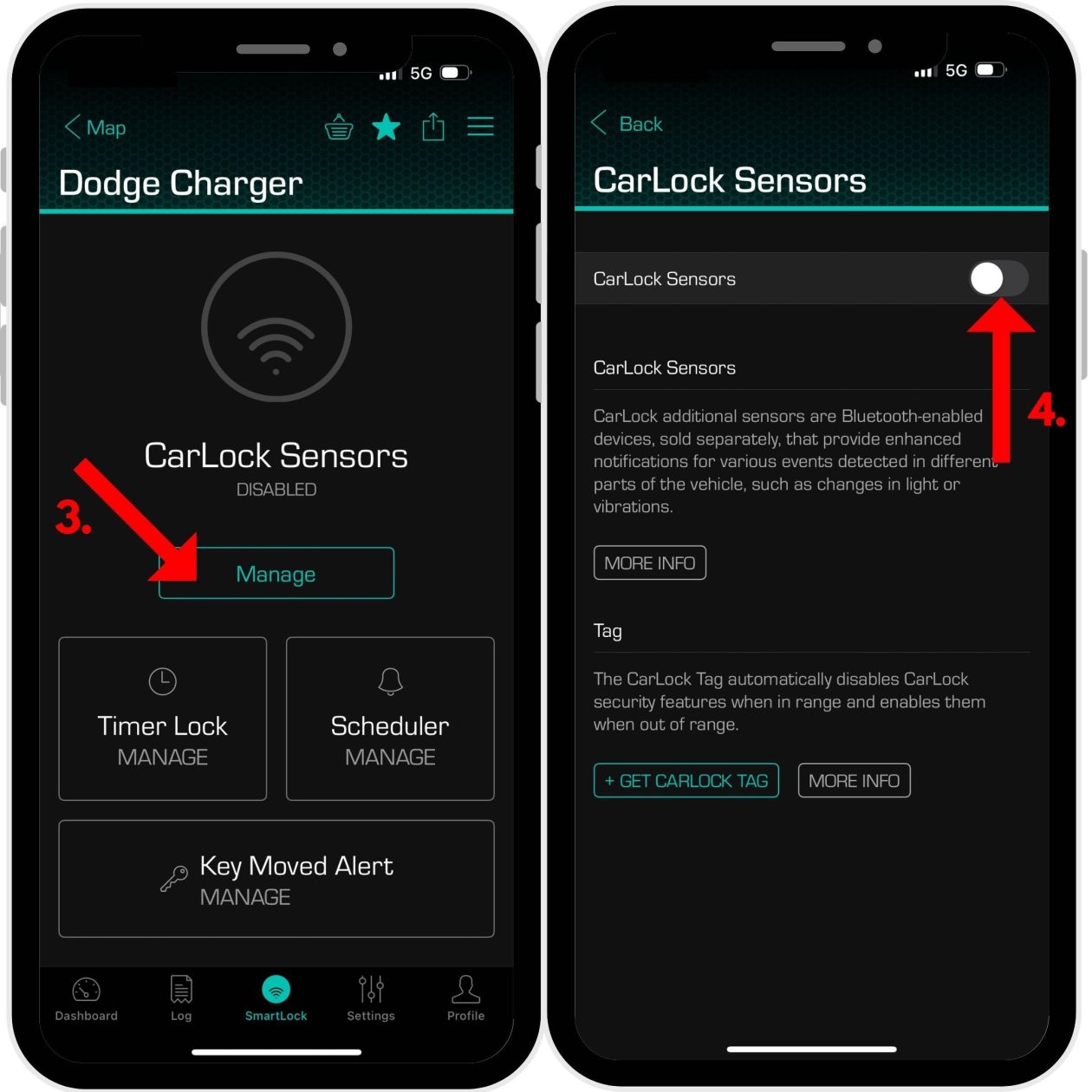

• Tap ‘’Dashboard’’ on the map screen.
• Tap ‘’SmarLock’’ in the menu.

• Tap ‘’Manage’’.
• Tap the slider to turn the CarLock Sensors ‘’ON’’.

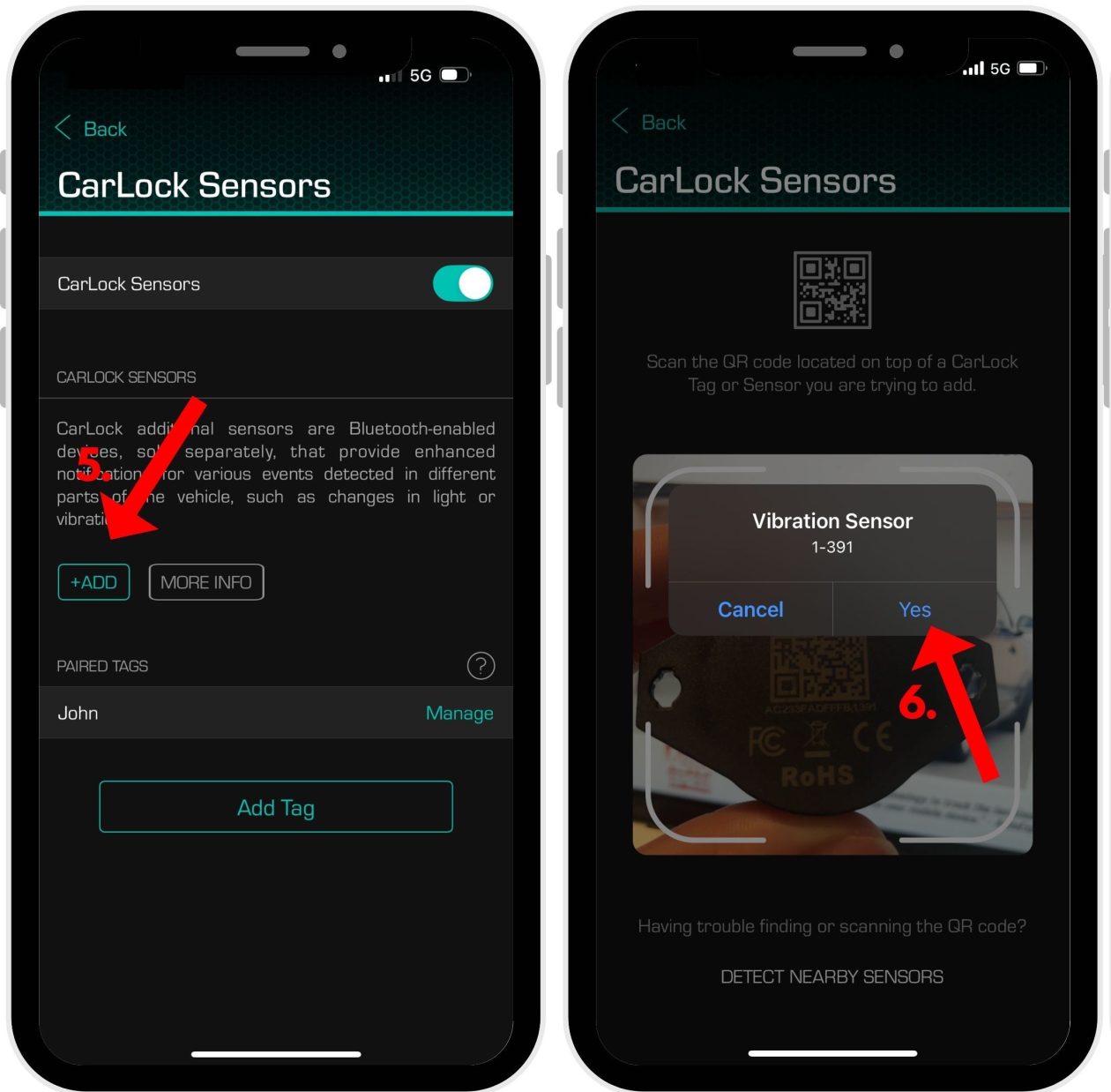

• Tap ‘’Add’’.
• Scan the QR code of your Vibration sensor (can be found at the bottom of the Sensor accessory) and when the QR is recognized, tap ‘’Yes’’. After that, follow the instructions on how to turn on the sensor, rename it and test it.
  *If the sensor is already attached to your car and the QR code can no longer be accessed, unscrew the lid, remove the plastic tab (as shown here), select “Detect Nearby Sensors”, and shake the sensor until the app detects it.
• Finish the enabling and testing steps the system offers (keep your Vibration sensor all the time next to your phone while finishing those steps)

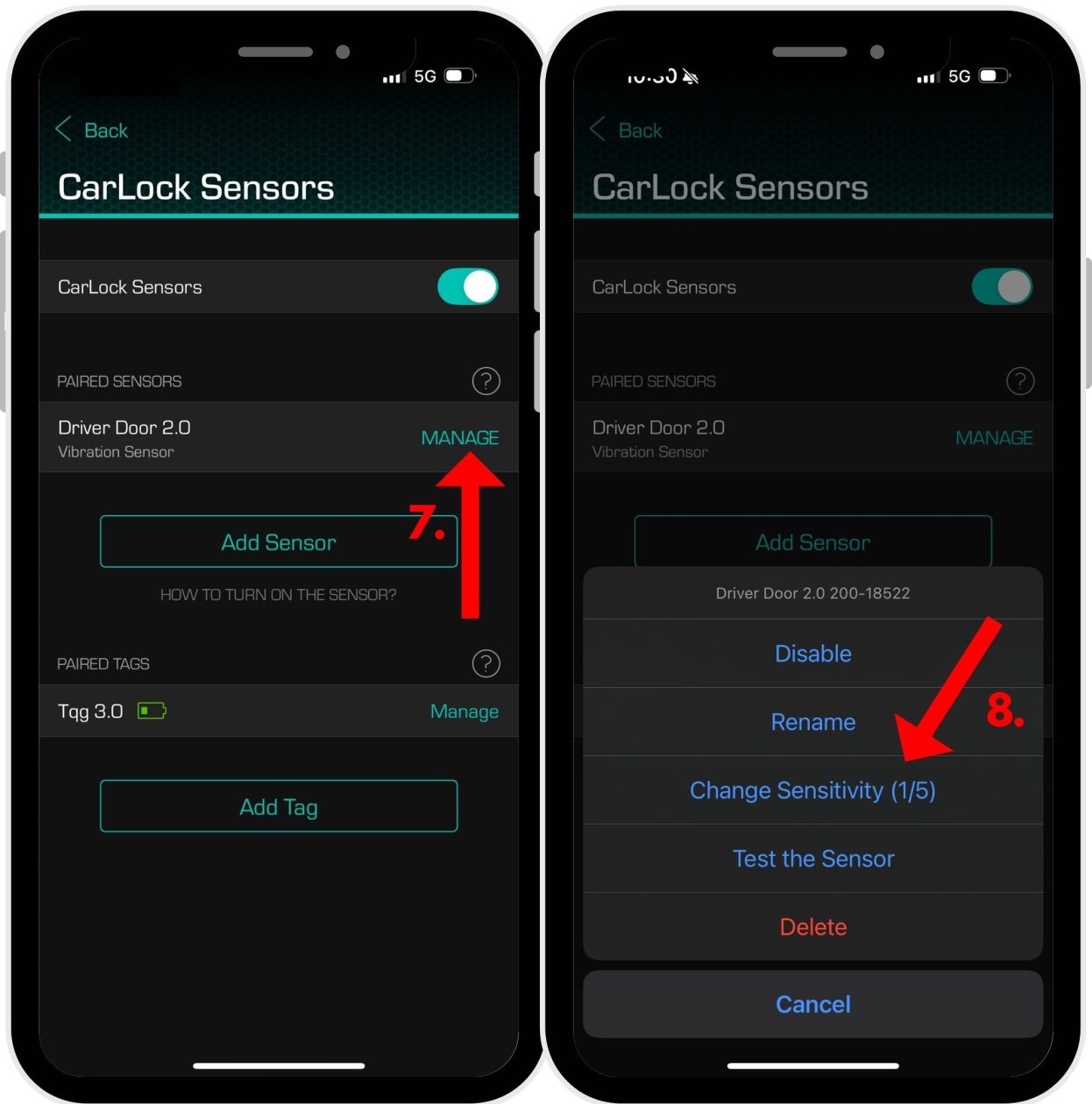

• If you wish to change sensitivity, rename, disable, delete or test your vibration sensor, tap ‘’Manage’’.
• Choose the action you’d like to take (if you delete the vibration sensor from your app, it has to be paired again to work)
• When choosing ”Change sensitivity”, have the Vibration sensor near your phone, then tap on one of the levels (from 1 to 5; 5 being the most sensitive), then tap ”Configure” and follow the steps the system offers. You can change the sensitivity anytime you wish.

Attaching the Vibration sensor 2.0 to your car and testing security notifications

Where to place the vibration sensor?

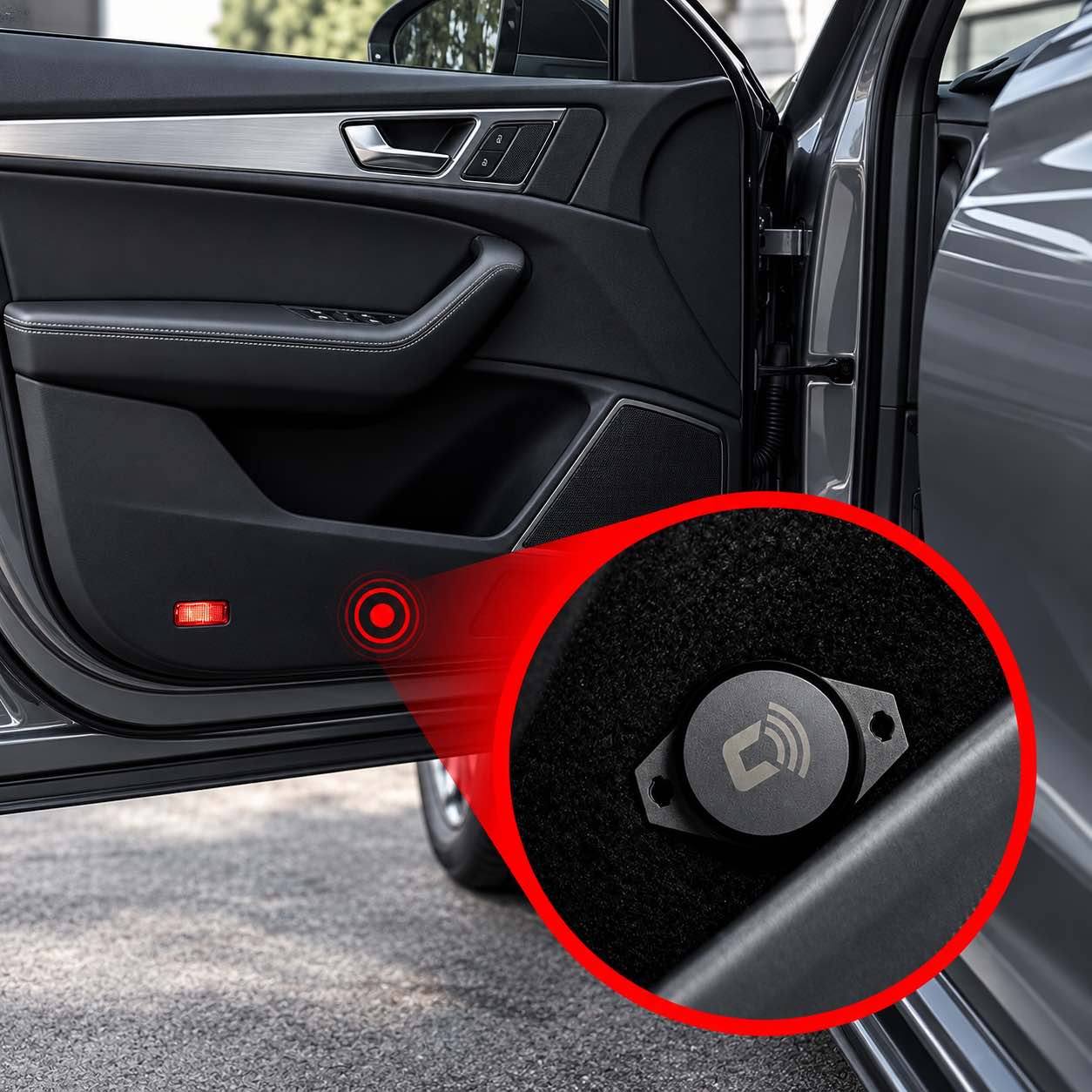

Place the CarLock Vibration sensor in any location you’d like to monitor and be notified in case the vibration is detected. The most preferable location for our customers who tested the vibration sensor is the car doors. But it can also be placed in the trunk, in the glove compartment or anywhere else.

Not only can the CarLock Vibration sensor help protect your car, but it can also help protect different valuable items you keep in the car or even next to it, such as tools, electric bikes, etc.

The CarLock Vibration sensor communicates directly with your CarLock device as long as it is within its Bluetooth range (approximately 20 feet). This allows you to expand the CarLock functionality even outside of your car. Simply install the Vibration sensor on the chosen valuable item using a sticker that comes with the device, enable your CarLock security and you will be notified directly to your CarLock App if any vibration is detected.

How to test the Vibration sensor 2.0 security notifications?

After you pair the Vibration sensor 2.0, you can easily test it using these steps:

• Be with the Vibration sensor 2.0 in Bluetooth range with the CarLock device plugged into your car (approx. 20 ft).
  *Make sure not to have your vehicle on the external battery charger.
• Enable your CarLock security. More can be read HERE.
• Shake the Vibration sensor 2.0 to get the push notification on your smartphone.
  *The cooling-down period is approximately 1-2 minutes. That means that if you shake the sensor twice in 1 minute, you will only receive 1 notification.

FAQ

Where can I purchase a Vibration sensor 2.0?

The Vibration sensor 2.0 can be purchased on Amazon (only in the UK at the moment). Please follow this link: https://www.amazon.co.uk/dp/B0H62JRQT5.

How to change the sound of the vibration sensor notification?

iPHONE

On the iPhone app, you can currently only change the sound for the ”Vibration detected” notification.

To do that, go to your CarLock app -> select ”Settings” in the menu at the bottom of the screen -> scroll down to the notifications settings -> tap ”Vibration” -> tap the slider to turn the ”Loud Notification” on

Now the sound for the ”Vibration detected” notification is the same as the sound for the ”Vehicle moved”, ”Device disconnected” and ”Engine started” notifications.

ANDROID

To change the ”vibration detected” notification to a louder sound, go to CarLock app -> click ”Settings” in the menu at the bottom of the screen -> scroll down to notifications settings -> click ”Vibration” -> put the slider for ”Loud Notification” on

Now the sound for the ”Vibration detected” notification is the same as the sound for ”Vehicle moved”, ”Device disconnected” and ”Engine started” notifications.

On Android, you can change the sound of any notifications to the sound from your phone by going to Settings > Apps / Notifications > CarLock > Notifications > Select any of the listed channels (For example VEHICLE MOVED) > Sound (Android 10 may have the Alerting and Silent options), select Alerting, then Advanced > Sound) and pick any of the available sounds (except “App provided sound”).

You can also check the info on how to do that on the following link: https://www.guidingtech.com/set-different-notifications-sounds-for-different-apps-android-phones/

How long does the battery in the Vibration sensor 2.0 last?

The battery of the vibration sensor lasts 1-year. Once the battery is empty, it can be easily replaced with a new 3V CR2477 battery.

Is the Vibration sensor 2.0 waterproof?

The vibration sensor is waterproof, which makes it appropriate for outdoor placement, including the proximity of the catalytic converter. However, it’s important to avoid installing it on metal that heats up to high temperatures, which could potentially melt the plastic housing.

Can I have more than one Vibration sensor 2.0 paired under my CarLock account?

Yes, you can. There is no limit on the number of sensors in your CarLock app. We do recommend, though, that you rename the sensors according to the location, so you’ll know exactly which sensor the vibration alert is coming from.

What’s the maximum distance between the car (with the CarLock device installed) and the vibration sensor, so it can still communicate with the CarLock device and send vibration notifications?

The CarLock Vibration sensor communicates directly with your CarLock device as long as it is in its Bluetooth range (approximately 20 feet).

Does the vibration sensor have a cooling down period?

Yes, it does. The cooling down period is approximately 1 minute. That means that if you shake the sensor twice in 1 minute, you will only receive 1 notification.
